一、插件下载
官方地址:3D WebView-Windows-macOS-Web Browser v4.2(官方下载地址:3D WebView: the ultimate cross-platform web browser for Unity | Vuplex Store)
百度网盘:
3.17版本(https://pan.baidu.com/s/1QKYf5h45gpF5QI5Hzcskyw 提取码:vo9p)
4.2、4.3.2、4.3.3、4.4版本(https://pan.baidu.com/share/init?surl=MEH7LAaYY-PkWh6-d16E6g&pwd=3142)
二、插件导入

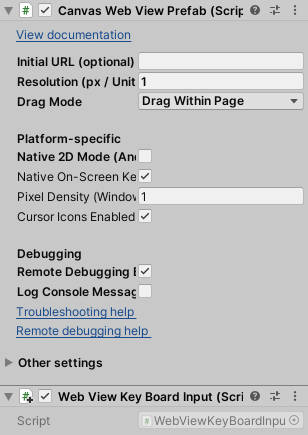

新建一个场景,并新建一个Canvas。导入插件后,找到Assets\Vuplex\WebView\Core\Prefabs\Resources\CanvasWebViewPrefab.prefab预设, 将其拖到Canvas下。
二、脚本代码
1.加载网页
插件可以从URL或者本地的html文件中加载网页。webview.WebView.LoadUrl(url);
以打开Unity官网为例:
using UnityEngine;
using Vuplex.WebView;
public class test : MonoBehaviour
{
public CanvasWebViewPrefab canvasWebView;
async void Start()
{
await canvasWebView.WaitUntilInitialized();
canvasWebView.WebView.LoadUrl("https://unity.cn/");
}
}
2、常用API
https://developer.vuplex.com/webview/CanvasWebViewPrefab
3、常见问题
Search documentation | Vuplex Support
4、其他零碎问题:输入法、中文输入、开启上传文件、开启下载文件、文件保存位置、光标状态、页面内拖拽或拖拽滑动页面、cookie的增删改查。
using System;
using System.Collections;
using System.Collections.Generic;
using System.Diagnostics;
using System.IO;
using System.Runtime.InteropServices;
using UnityEngine;
using Vuplex.WebView;
using Vuplex.WebView.Demos;
using Debug = UnityEngine.Debug;
/// <summary>
/// 解决webview输入问题 没有这个脚本,不能正常输入
/// (解决中文输入是在CanvasWebViewPrefab.cs Input.imeCompositionMode = IMECompositionMode.On;)
/// 解决在Windows平台上传文件,打开选择文件对话框
/// </summary>
public class WebViewKeyBoardInput : MonoBehaviour
{
private CanvasWebViewPrefab canvasWebView;
HardwareKeyboardListener _hardwareKeyboardListener;
public System.Action<ProgressChangedEventArgs> OnLoadProgressChanged;
async void Start()
{
canvasWebView = transform.GetComponent<CanvasWebViewPrefab>();
#region 输入框输入功能
_setUpHardwareKeyboard(canvasWebView);
#endregion
await canvasWebView.WaitUntilInitialized();
#region 开启上传功能
var standaloneWebView = canvasWebView.WebView as StandaloneWebView;
standaloneWebView.SetNativeFileDialogEnabled(true);
#endregion
#region 开启下载功能
var webViewWithDownloads = canvasWebView.WebView as IWithDownloads;
if (webViewWithDownloads == null)
{
Debug.Log("This 3D WebView plugin doesn't yet support IWithDownloads: " + canvasWebView.WebView.PluginType);
return;
}
webViewWithDownloads.SetDownloadsEnabled(true);
webViewWithDownloads.DownloadProgressChanged += (sender, eventArgs) => {
Debug.Log($@"DownloadProgressChanged:
Type: {eventArgs.Type},
Url: {eventArgs.Url},
Progress: {eventArgs.Progress},
Id: {eventArgs.Id},
FilePath: {eventArgs.FilePath},
ContentType: {eventArgs.ContentType}"
);
if (eventArgs.Type == ProgressChangeType.Finished)
{
Debug.Log("Download finished");
// 默认下载路径是 Application.temporaryCachePath(Appdata/Local/Temp/公司名/应用名)
string[] filePath = eventArgs.FilePath.Split('\\');
string fileName = filePath[filePath.Length - 1];
//如果原来路径上存在该文件 则需要删除后在进行移动
if(File.Exists(Application.dataPath + "/../Download/" + fileName))
{
File.Delete(Application.dataPath + "/../Download/" + fileName);
}
//移动到指定的固定位置
File.Move(eventArgs.FilePath, Application.dataPath + "/../Download/" + fileName);
//打开下载文件的目录
Application.OpenURL($"File://{Application.dataPath}/../Download/");
//只能打开绝对路径
//string newPath = Application.dataPath + "/../Download/" + fileName;
//WindowsTools.ExplorerFile(newPath);
}
};
#endregion
#region file选择 新版3dwebview4.2支持自定义文件对话框(也有bug,多次选择没有效果)
//var webViewWithFileSelection = canvasWebView.WebView as IWithFileSelection;
//if (webViewWithFileSelection != null)
//{
// webViewWithFileSelection.FileSelectionRequested += (sender, eventArgs) =>
// {
// // Note: Here's where the application could use a system API or third party
// // asset to show a file selection UI and then pass the selected file(s) to
// // the Continue() callback.
// var filePaths = new string[] { OpenWindowDialog() };
// eventArgs.Continue(filePaths);
// };
//}
#endregion
#region 页面加载失败回调
canvasWebView.WebView.PageLoadFailed += WebView_PageLoadFailed;
#endregion
#region 加载进度 新版插件才支持
canvasWebView.WebView.LoadProgressChanged += (sender, args) =>
{
if(OnLoadProgressChanged!=null)
{
OnLoadProgressChanged.Invoke(args);
}
};
#endregion
#region 光标状态 新版插件才支持
#endregion
}
/// <summary>
/// 页面加载失败回调 失败后显示提示,同时让浏览器加载空页面防止出现404界面
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void WebView_PageLoadFailed(object sender, System.EventArgs e)
{
WindowsTools.MessageBox(System.IntPtr.Zero, "数据加载失败,请检查是否可以连接到服务器!", "错误", 0);
canvasWebView.WebView.LoadUrl("about:blank");
}
void _setUpHardwareKeyboard(CanvasWebViewPrefab webView)
{
_hardwareKeyboardListener = HardwareKeyboardListener.Instantiate();
_hardwareKeyboardListener.KeyDownReceived += (sender, eventArgs) => {
var webViewWithKeyDown = webView.WebView as IWithKeyDownAndUp;
if (webViewWithKeyDown != null)
{
webViewWithKeyDown.KeyDown(eventArgs.Value, eventArgs.Modifiers);
}
else
{
webView.WebView.SendKey(eventArgs.Value);
}
};
_hardwareKeyboardListener.KeyUpReceived += (sender, eventArgs) => {
var webViewWithKeyUp = webView.WebView as IWithKeyDownAndUp;
webViewWithKeyUp?.KeyUp(eventArgs.Value, eventArgs.Modifiers);
};
}
float timer = 0;
private void Update()
{
//让弹窗保持在最前端 因为不知道什么时候才有弹窗,所以循环查找
timer += Time.deltaTime;
if(timer >= 0.5f)
{
SetFileDialogFor();
timer = 0;
}
}
private void SetFileDialogFor()
{
IntPtr hWnd =WindowsTools.FindWindow(null,"Open Files");
if (hWnd == IntPtr.Zero)
hWnd = WindowsTools.FindWindow(null, "Open File");
if(hWnd != IntPtr.Zero)
WindowsTools.SetForegroundWindow(hWnd);
}
}
以上代码在高版本(小编使用4.4版本)中部分不需要单独写脚本,可以按需使用。
cookie操作:
//保存cookie
private async void SetWebCookie(string cookieValue)
{
if (Web.CookieManager == null)
{
Debug.Log("Web.CookieManager isn't supported on this platform.");
return;
}
string[] urlSplit = loginUrl.Split(':');
var success = await Web.CookieManager.SetCookie(new Cookie
{
Domain = urlSplit[1].Replace("//", ""),
Path = "/",
Name = "Admin-Token",
Value = cookieValue,
//到期时间7天
ExpirationDate = (int)DateTimeOffset.Now.ToUnixTimeSeconds() + 60 * 60 * 24* 7,
HttpOnly = false,
Secure = false
});
Debug.Log($"保存cookie {success}!");
}
//获取cookie
private async void GetCookie()
{
if (Web.CookieManager == null)
{
Debug.Log("Web.CookieManager isn't supported on this platform.");
return;
}
var cookies = await Web.CookieManager.GetCookies("http://192.168.32.227");
if (cookies.Length > 0)
{
Debug.Log("Cookie: " + cookies[0]);
}
else
{
Debug.Log("Cookie not found.");
}
}
参考资料:
